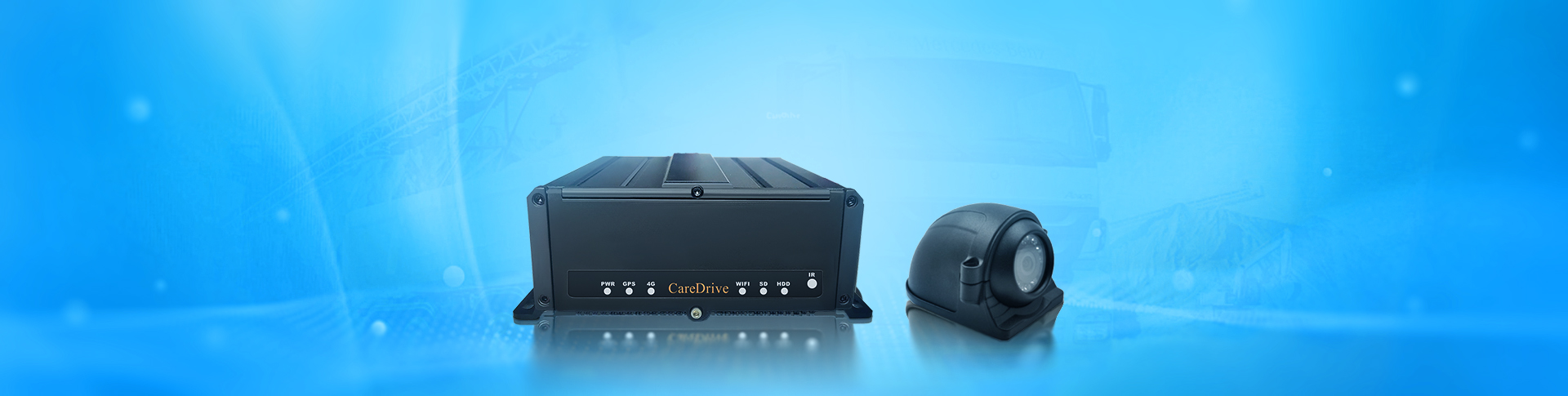

Blind Spot Detection System MR910-BSD/MR920-BSD/MR930-BSD

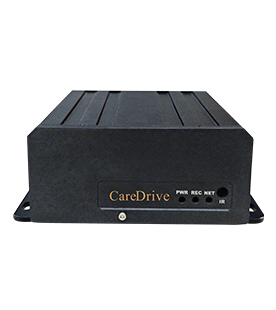

MR910-BSD/MR920-BSD/MR930-BSD is an intelligent 4/8/12 channels Mobile DVR integrating with 1~4 channels BSD (blind spot detection), GPS/Beidou positioning, SD card/hard disk storage, etc, it has an optional platform for better fleet management.
It is suitable for customers who need to monitor the pedestrian or non-motor vehicle in the blind spot of the vehicle, and issue voice alarm to remind driver.
It is suitable for customers who need to monitor the pedestrian or non-motor vehicle in the blind spot of the vehicle, and issue voice alarm to remind driver.
- Inquire Online
- 0086 20 62316781
- Functions
- Features
- Specification
- Application
- FAQ
● blind spot detection (bsd) ●
-
1~4 Channels (Left, Right, Front, Rear) BSD Camera Monitoring
-
Blind Spot's Pedestrian/Non-motor Vehicle Warning
-
Sound And Light Alarm To Remind Driver And Pedestrian
● Other Functions ●
-
GPS/Beidou Positioning
-
Platform For Fleet Management (Optional)
-
4/8/12 Channels AHD Real-time Video Monitoring & Playback (Optional)
-
SD Card/Hard Disk Storage
-
Mobile APP/Remote Controller for Debugging
-
Light Warning (Optional)
-
IP Voice Intercom (Optional)
-
Tire Pressure Sensor (Optional)
-
Fuel Level Sensor (Optional)
● Other Blind Spot Detection System Products ●
①. Support Customization of Multiple Alarm Languages;
②. Strong Shockproof;
③. Easy installation;
Items | Description |
---|---|
Audio and Video Input | 4-channel |
CVBS Video Output | 1-channel |
SD Card | Support 2pcs within 512GB |
IO Input | 4-channel |
IO Output | 1-channel |
RS232/RS485 | 1-channel |
USB Port | 1-channel |
MIC Port (external walkie-talkie) | 1-channel |
LAN Port/VGA Port | Optional, LAN port and VGA port can be selected one of them. |
GPS | √ |
4G | Optional |
WIFI | √ |
CMS platform | Optional |
Mobile APP | √ |
External Alarm Light | Optional |
Can detect pedestrians, riding motorcycles, electric vehicles, bicycles, tricycles, backpacks and umbrellas:
It is widely used for commercial fleets such as mining trucks, construction industry vehicles, cargo trucks, tankers, buses, etc:
- Q1. What kind of vehicles does it suitable for?
-
A: It is suitable for cars, buses, trucks, etc.
- Q2. Can MR910-BSD/MR920-BSD/MR930-BSD detect at night?
-
A:Yes, MR910-BSD/MR920-BSD/MR930-BSD works at day and night and any weather.
- Q3. Is it difficult install?
-
A: No, it is very convenient to install. There is a Calibration APP to assist you and we will also provide you full support if needed.
- Q4. How long is the warranty?
-
Two years.
