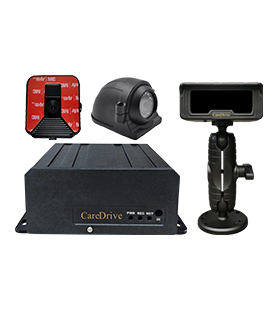

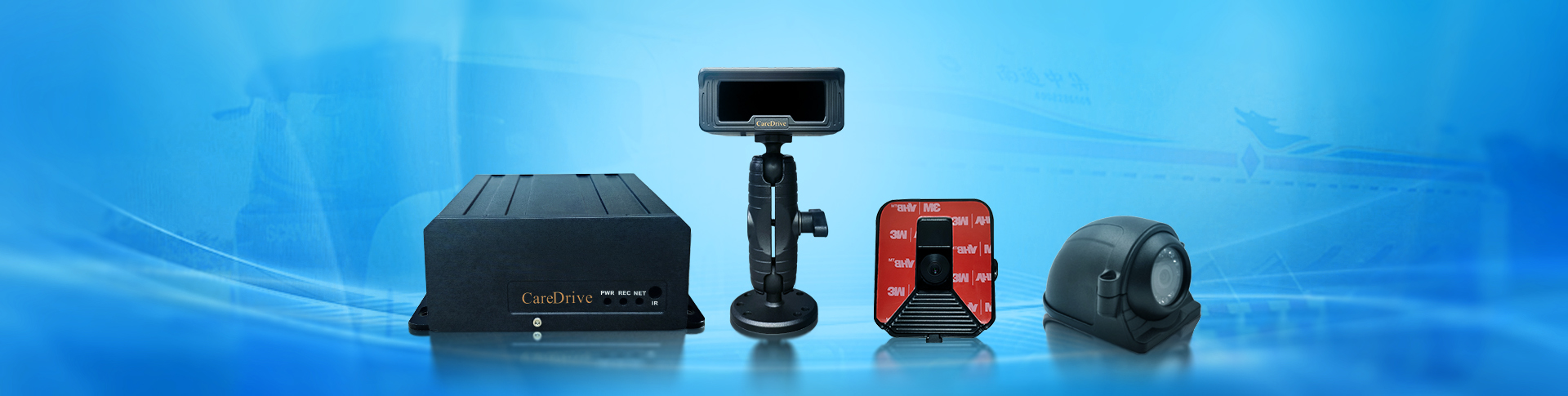

All-in-one Safety Driving System MR910-DAB1
It is suitable for customers who do not have their own MDVR/GPS tracker but need to monitor driver’s driving behavior and the road environment (including, vehicles, lanes, pedestrians, etc.), remind the driver through voice alarm, and monitor pedestrians and non-motor vehicles entering the blind spot. Meanwhile, they also need a platform for fleet management like alarm information query and statistics, alarm picture and video viewing, remote real-time video monitoring, etc.
- Inquire Online
- 0086 20 62316781
- Functions
- Features
- Specification
- Application
- FAQ
● DrivER status monitoring (DSM) ●
-
Fatigue Alarm
-
Yawning Alarm
-
Distraciton Alarm
-
Driver Abnormality Alarm
-
Smoking Alarm
-
Calling Alarm
-
Over Speed Alarm
-
No Mask Alarm
-
Infrared Blocking Alarm
-
Camera Blocking Alarm
-
Camera Failure Alarm
-
Driver ID Identification
● Advanced driving assistance system (ADAS) ●
-
Forward Collision Warning (FCW)
-
Lane Departure Warning (LDW)
-
Headway Monitoring & Warning (HMW)
-
Pedestrian Collision Warning (PCW)
● Blind spot detection (BSD) ●
-
1-channel BSD Camera Monitoring
-
Blind Spot’s Pedestrian/Non-motor Vehicle Warning
-
Sound And light Alarm To Remind Driver And Pedestrian
● Other Functions ●
-
GPS Positioning
-
4-channel AHD Real-time Video Monitoring & Playback
-
Platform For Fleet Management (Optional)
-
SD Card/Hard Disk Storage
-
Mobile APP/Remote Controller For Debugging
-
Light Warning (Optional)
-
Vibrating Warning (Optional)
-
IP Voice Intercom (Optional)
-
Tire Pressure Sensor (Optional)
-
Fuel Level Sensor (Optional)
● Other All-in-one Safety Driving System Products ●
①Support Customization of Multiple Alarm Languages;
②Strong Shockproof;
③Easy installation.
Items | Description |
---|---|
Operating system | Linux |
Operation interface | Graphical menu operation interface (OSD menu) |
Video input | 4CH,1.0Vp-p,75Ω, Support camera resolution : 1080P, 720P, D1 |
Video output | 1 CH CVBS output, Can Expand 1CH VGA output |
Video format | PAL/NTSC |
Video Compression Format | H.264/H.265 |
Video Resolution | Support 1080P, 720P, D1, HD1, CIF optional |
Image Quality | Level 1 to 8, best level 1, lowest level 8 |
Audio Input | 4-channel analog audio |
Alarm Input | Four switch volume input and one emergency alarm input |
Alarm Output | 1. Switch volume output |
Port | 2 RS232, optional 1 RS232,1 RS485 |
Storage | 2 SD card video recordings with a maximum capacity of 512GB |
Video Playback | Support 1-4 road playback, support 2,4,8,16 times fast forward or back |
Input voltage | DC:+9V ~ +36V |
Work Temperature | -20℃ to +70℃ |
Work Humidity | 20%~90% |
MR910-DAB1' s DSM camera can detects with wearing hats, glasses or sunglasses:
MR910-DAB1' s ADAS camera can do detecting normally under any weather conditions (e.g. sunny day, rainy and snowy day, haze weather), and any lighting conditions (e.g. day, dusk, night, dawn):
MR910-DAB1' s BSD camera can detect pedestrians, riding motorcycles, electric vehicles, bicycles, tricycles, backpacks and umbrellas:
It is widely used for commercial fleets such as mining trucks, construction industry vehicles, cargo trucks, tankers, buses, etc:
- Q1. What kind of vehicles does it suitable for?
-
A: It is suitable for cars, buses, trucks, etc.
- Q2. Can MR910-DAB1 detect at night?
-
A:Yes, MR910-DAB1 works at day and night and any weather.
- Q3. Can I monitor the drivers on the platform?
-
A: Yes, there is a CMS platform for real-time video monitoring, alarm information query, vehicle real-time positioning, etc.
- Q4. How long is the warranty?
-
Two years.
