Passenger Statistics System
- Function and Installation
- Product Parameters

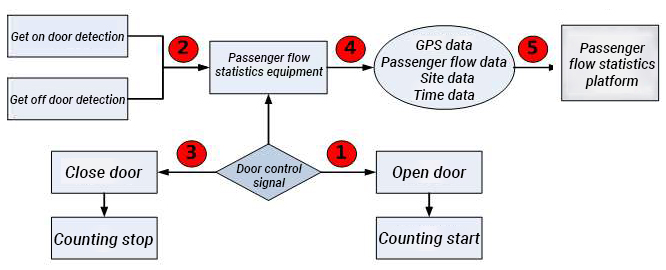

- Product Workflow
1. After the vehicle arrives at the station, the system detects the door opening signal.
2. The passenger model collected by the system through the upper and lower door collection devices, through the passenger flow statistics device.
3. Passenger identification analysis and counting.
4. Stop counting after the door is closed.
5. Combine the current time information, site information and other data for summary association.
6. Upload the passenger flow information of the station to the central platform.

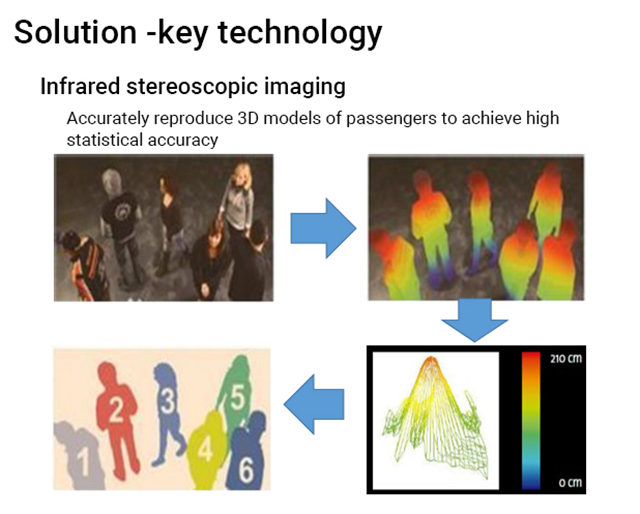

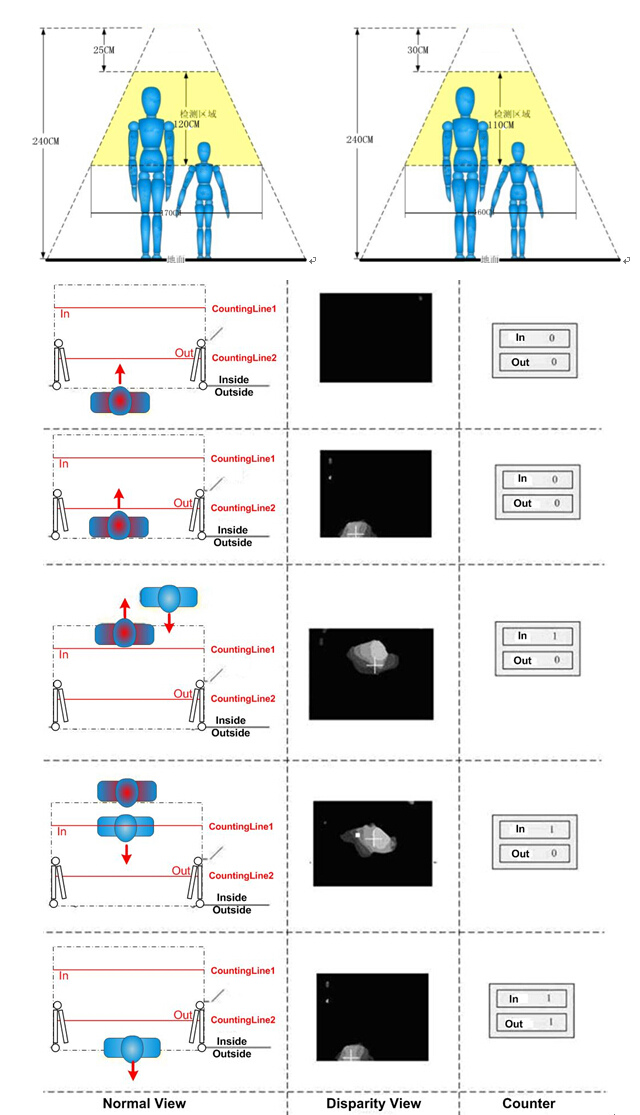

7. Not only locate the moving passengers, but also determine the height of the passengers, distinguishing between children and adults.

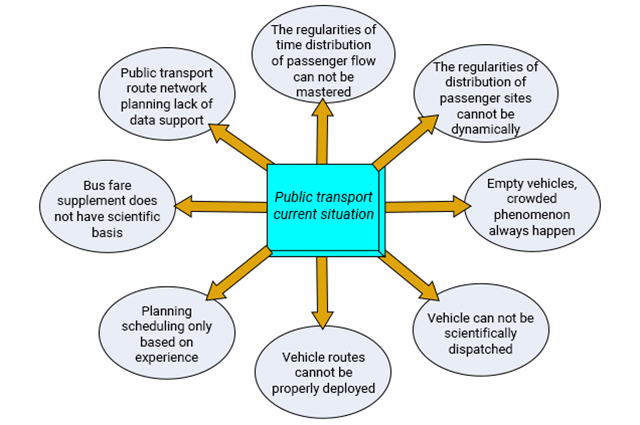

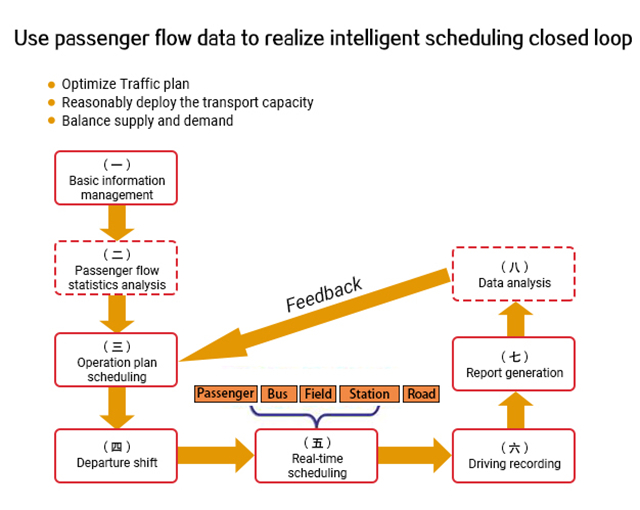

8. The function value of bus passenger flow is realized by the platform, which mainly makes the management personnel understand the passenger flow situation and the change law of passenger flow. Vehicle scheduling is reasonably based on data rather than taking it for granted. Avoid overcrowding and long waiting times for passengers, resulting in poor experience. Avoid running vehicles and too few passengers, resulting in high operating costs.
9. Understand whether the actual passenger flow and the charge collected is equivalent.
|Industrial design||Safety and reliability, design of air head interface, and rich external interface|
|Graphic operation interface||Through the screen, the remote control sets all kinds of parameters of the system|
|Support language||Chinese, English, (optional), other customizable (optional)|
|Security management||Two level management of user password and administrator password|
|Video and preview||Video input and output||4 channel AHD video input, 1 channel CVBS video output; 1.0Vp-p, 75Ω|
|OSD||Superposition of information images, such as character superposition, time and date, vehicle ID and so on|
|Video compression format||H.264 compression coding. Use Hisilicon 3520D high performance processor.|
|Double bit stream||Support|
|Preview function||Single route and 4 picture stitching preview, supporting event triggering full screen and splicing display function|
|Frame rate||720P: maximum 120 frame / second, PAL: 100 frame / second, single path maximum 25 frame / second; NTSC: 120 frame / second, single path maximum 30 frame / second|
CIF:38451276810241536, five level optional
D1: 512768102415362048, five level optional
720P:20483072409651206144, five level optional
|Compression format||Using G.726 coding|
|Storage||Storage medium||Support dual SD card, SD card supports 256G best, support double SD card cycle coverage, record SD1, record SD2, and do cycle delete (delete the earliest time video).|
|Storage strategy||Default boot storage|
|Alarm||Alarm input||3 way switch signal alarm input|
|Alarm output||1 route alarm output|
|Functional alarm||Video loss alarm|
|Location||Built-in GPS module, external GPS antenna|
|Mobile network (optional)||3G, 4G, WIFI can be supported|
|System upgrade||SD card upgrade and remote upgrade|
|Power and power consumption||Power management||
1. ACC switchgear
2. Delayed shutdown
3. Timing switchgear
4. Remote control switchgear
With overload protection, under voltage protection, short circuit protection, reverse protection and so on
|Input voltage||DC:+8V ~ +36V|
|Power waste||Normal working state < 10W; under standby state < 5W|
|Work environment||Temperature||Routine: -20 C ~ +85 C|
|Humidity||10% to 95%|
|Size||147 (W) x 146(H) x 42(L) mm|
New Counter Specifications:
* High precision counting accuracy (>97%).
* Popular Hi3520D chips solution.
* Rich RS-232 for external devices.
* 4CH Video Input, 2CH Video Output.
* Really Vandal-proof & EMC for buses.
* Excellent power protection 9-36V,10A max.
* Effectively distinguish bidirectional moving, shoulders, retention, wandering, luggage, etc.
* Well-tested design in thousands of buses over the world.
* 195-300cm (height), 80-300cm(width).
* Easy setup and connection to IPAS system.
* 300,000pcs of records saved in memory.
* Smartly Resent records when network is lost.
* 30-90MB data plans only every month.
* Used in step environment.
* Built-in 3G/WIFI/GPS optional.
* Max 4bus doors with combination of counters.
* RJ45×1 Ethernet port.
* 3IO Input.

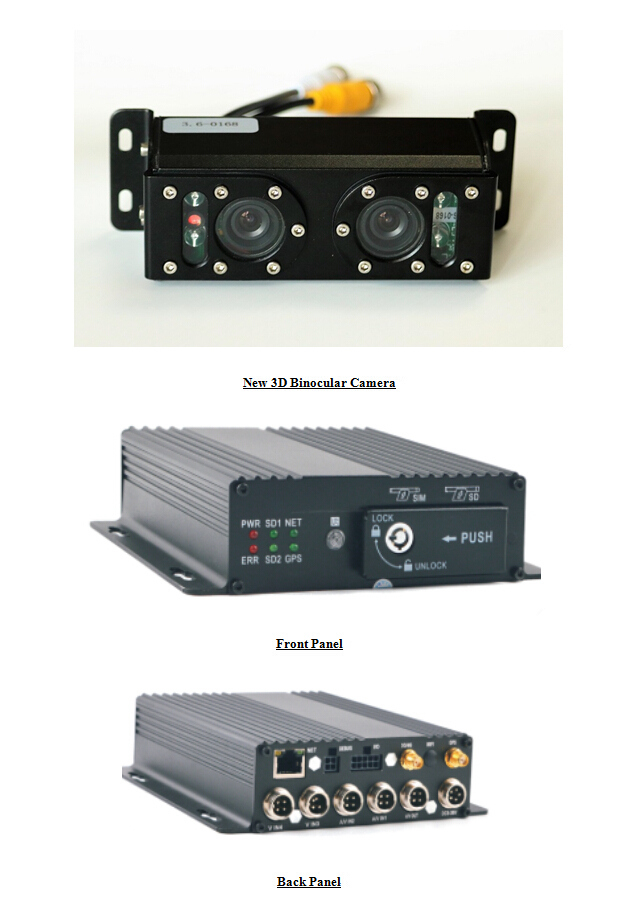

* 3D Binocular Camera:≤3 W.
* BPC-V1 ≤ 8W.
* BPC-V2 ≤ 11W.
* MTBF:>6000 hours.
* Temperature range:-25~+55℃.
* Relative Humidity:10% - 90%.
* Heat radiating: Passive heat output(natural cooling).
* 720P AHD CMOS Sensor.
* Effective pixel 1280*720.
* IP 65, Dust proof.
* 0.05 Lux (LED is OFF).
* Metal IR-Cut.
* 12V DC input.
* 180×64×55 mm (L×W×H).
