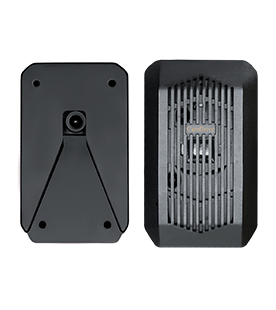

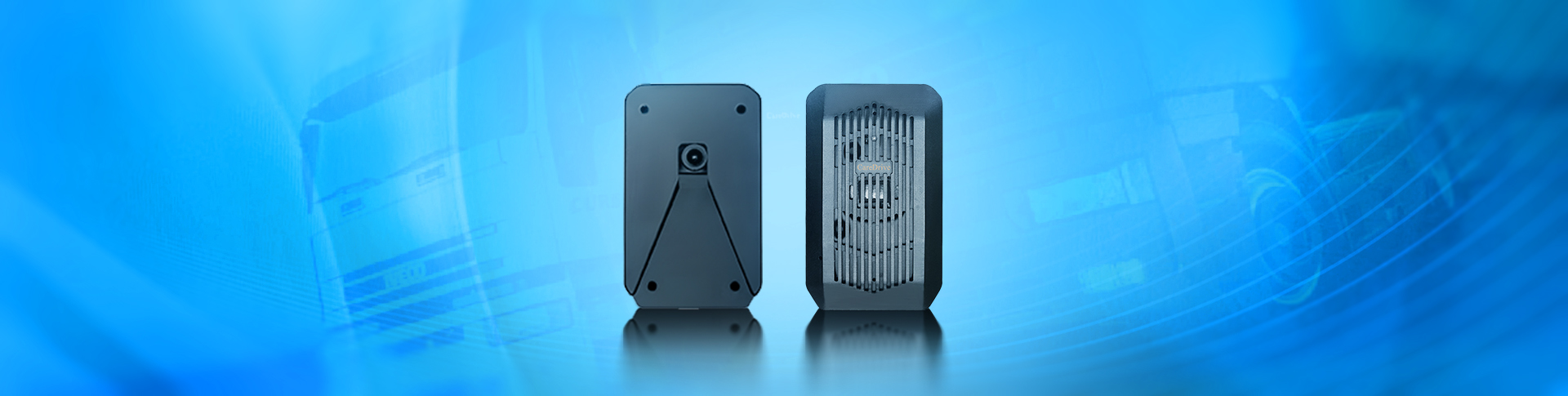

Anti-collision Warning System AWS302
Anti-collision warning system AWS302 is based on leading computer vision technology and utilizes cameras to perceive the road environment, including vehicles, lanes, pedestrians, etc., and is capable of reducing collision accidents with early warnings when it detects potential collision dangers during driving.
It is suitable for individual customers who don’t need the fleet management, and also those who have their own MDVR/GPS tracker and platform to connect it with MDVR/GPS tracker via I/O or RS232.
It is suitable for individual customers who don’t need the fleet management, and also those who have their own MDVR/GPS tracker and platform to connect it with MDVR/GPS tracker via I/O or RS232.
- Inquire Online
- 0086 20 62316781
- Functions
- Features
- Specification
- Application
- FAQ
● Main Functions ●
-
Forward Collision Warning (FCW)
-
Lane Departure Warning (LDW)
-
Pedestrian Collision Warning (PCW)
-
Headway Monitoring & Warning (HMW)
-
Forward Vehicle Start Reminder
-
Forward Vehicle Rolling Reminder
-
Over Speed Alarm
-
Video Output To MDVR/Monitor
-
Can Be Connected With MDVR/GPS Tracker VIA I/O OR RS232
-
Output Alarm Signal To MDVR/GPS Tracker
● Other Anti-collision Warning Products ●
①. High detection accuracy (overall detection accuracy above 95%);
②. Self-developed software/hardware;
③. 256GB tf card storage.
Items | Description |
---|---|
Power Input | DC 12V/24V |
Operating temperature | -20℃~70℃ |
Storage temperature | -40℃~85℃ |
Video input | Supports 1 channel AHD input (inbuilt 1-ch 720P) |
Video output | Supports 1 channel video output (optional)/td> |
Resolution | 1280*720P |
OSD | With character overlay function: time, date, vehicle ID and other information image will overlay. |
GPS | 1 channel |
WiFi | 1 channel (can be used as wireless AP, only for installation and debugging, etc). |
TF card | 1 channel, maximum support 256GB |
RS232 | 1 channel (optional) |
I/O | 4 channels output (optional) |
AWS302 can do detecting under any weather conditions (e.g. sunny day, rainy and snowy day , haze weather), and any lighting conditions (e.g. day, dusk, night, dawn):
Suitable for all types of vehicles:
- Q1. What kind of vehicles does it suitable for?
-
A: It is suitable for cars, buses, trucks, etc.
- Q2. Can AWS302 detect at night?
-
A:Yes, AWS302 works at day and night and any weather.
- Q3. Is it difficult install?
-
A: No, it is very convenient to install. There is a Calibration APP to assist you and we will also provide you full support if needed.
- Q4. How long is the warranty?
-
Two years.
