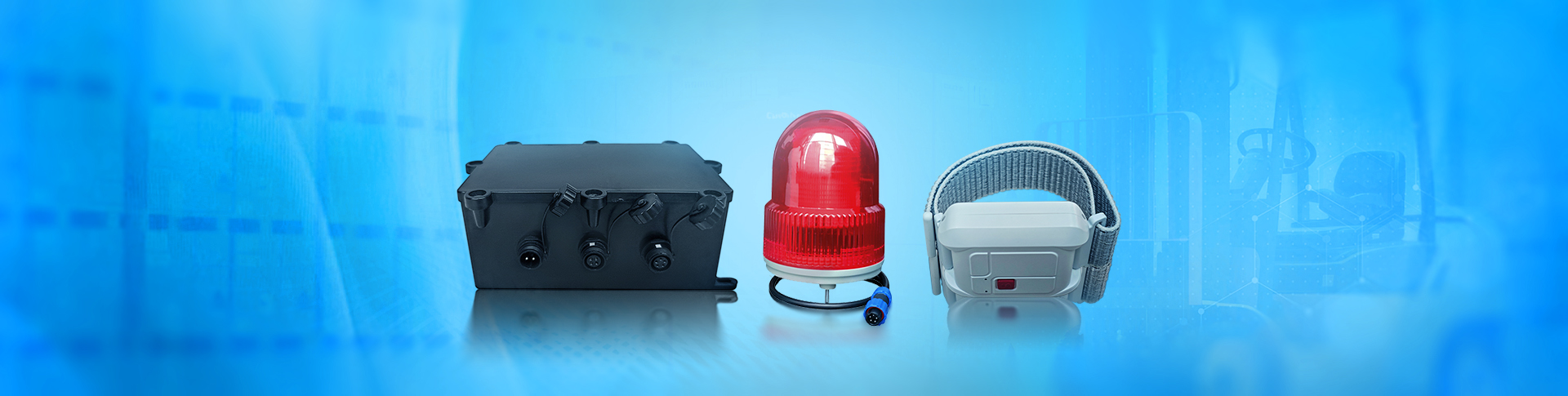

Proximity Warning Alert System UA350
- Inquire Online
- 0086 20 62316781
- Functions
- Features
- Specification
- Application
- FAQ
● Main functions ●
-
Vehicle - Worker Anti-collision Warning
-
Vehicle - Vehicle Anti-collisiton Warning
-
Corner Anti-collision Warning
-
Two Different Alarming Distance With Different Alarm Audio
-
Sound And Light Alarm To Remind Driver And Pedestrian
-
Tags Vibrate To Alert Pedestrians At The Same Time
-
Alarm-free Distance Can Be Set
-
0-100 Meters Alarm Distance Can Be Set
● Other Anti-collision System Products ●
①. Precise distance measurement: The detectable distance is within 100 meters, and the accuracy is 10 cm;
②. Unique ID: Base stations installed on each vehicle, tags worn by worker;
③. Two way range(TWR): Two different alarming distances with different alarm sound can be set. When workers enter the alarm area, the alarm light connected with the base station will issue different alarm sounds. The closer the distance, the faster the alarm;
④. Waterproof (base station): IP65.

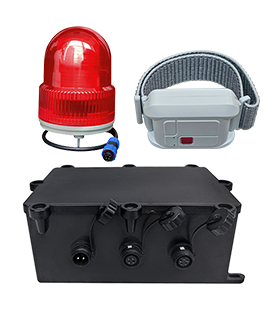

Base Station | |
Items | Description |
---|---|
Rated Voltage | DC 12V-24V |
Instantaneous Power | <5W |
Size | 200*200*75mm |
Working Temperature | -40℃~65℃ |
Frequency Range/Effective Range |
UWB (Ultra wideband) 3.25Ghz~6.75Ghz Range: 0~100m |
Interface |
“PWR” for power supply “Alarm” for alarm light “RS485” for hand setting instrument |
Antenna | Built-in |
Housing Material | ABS, waterproof |
Protection Level | IP65 |
Installation | Mounted horizontally on top of forklift |
Tag | |
Items | Description |
---|---|
Charging Voltage | DC 5V |
Battery Capacity | Built-in 600mAh rechargeable lithium battery |
Size | 42*41*20mm |
Working Temperature | -20℃~60℃ |
Frequency Range / Effective Range |
UWB(ultra wideband) 3.25Ghz~6.75Ghz Range: 0-100m |
Antenna | Built-in |
Button | SOS button (only configuration function, no emergency help function) |
Interface | Micro-USB |
Battery Duration | 8 hours a day, about 23 days |
Protection Level | IP67 |
Installation | Wear on pedestrians’ wrist or helmets. |
Alarm Light | |
Items | Description |
---|---|
Rated Voltage | DC 12-48V |
Rated Power | 10W |
Volume Level | 100dB |
Volume | Can be adjusted |
Hand Setting Instrument Rated Voltage | DC 12-24V |

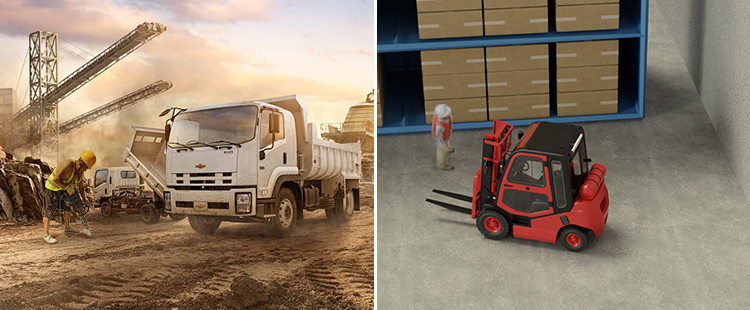

UA350 can detect worker, vehicle, corner:
Widely used for concrete transport vehicles, mixer trucks, cranes, excavators, bulldozers, etc:
- Q1. What kind of vehicles does it suitable for?
-
A: It is suitable for concrete transport vehicles, mixer trucks, cranes, excavators, bulldozers, etc.
- Q2. Can UA350 detect at night?
-
A:Yes, UA350 works at day and night and any weather.
- Q3. Is it difficult install?
-
A: No, it is very convenient to install. There is a Calibration APP to assist you and we will also provide you full support if needed.
- Q4. How long is the warranty?
-
Two years.
