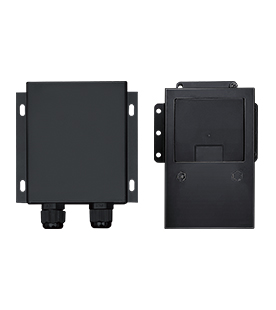

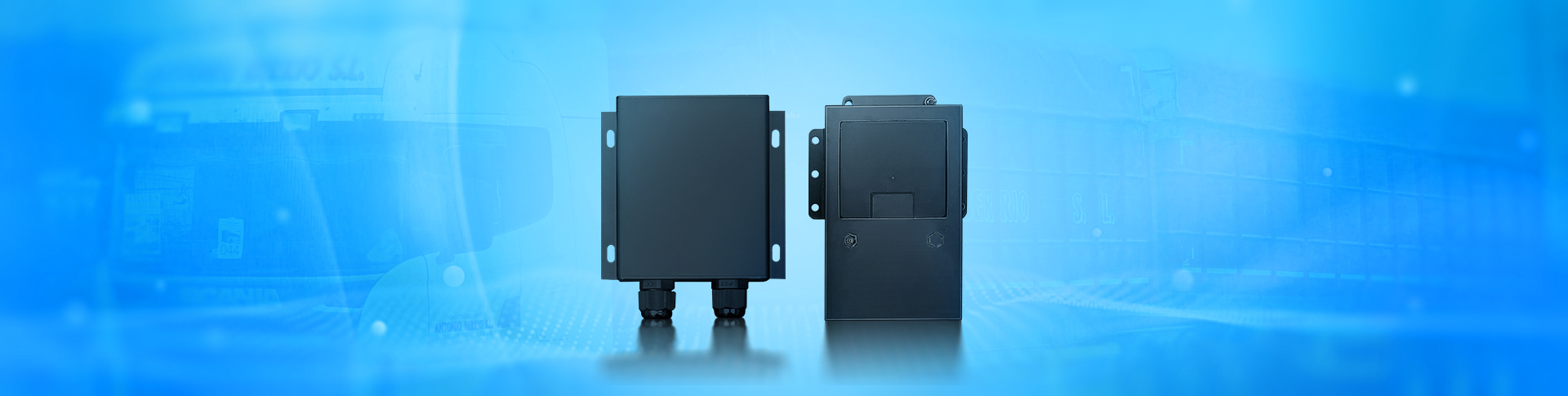

Blind Spot Detection System R350
Radar obstacle avoidance warning system R350 uses 77Ghz millimeter wave to detect objects, vehicles, pedestrians and other obstacles to send an early warning to reduce the risk of collision. The detection distance of R350 can be up to 40 meters, with three-level warning functions accompanied by different levels of sound and light alarm reminder. It can also be connected to the controller, automotive braking system or other equipment to realize automatic obstacle avoidance braking applications.
- Inquire Online
- 0086 20 62316781
- Functions
- Features
- Specification
- Application
- FAQ
● Main functions ●
-
Various kinds of obstacles can be detected (wall, shelves, people, vehicles and other objects)
-
3 levels detection distance with different flashing light and sound
-
Detection range up to 40M
-
77Ghz millimeter wave radar
-
Sound and light alarm with video monitoring
-
1~4 radars can be chosen with one control box
-
Good anti-interference performance
-
Suitable for all kinds of weather and vehicles
● Other Blind Spot detection products ●
①. High sensitivity, all objects can be detected;
②. Good anti-jamming performance. Suitable for all kinds of weather (foggy days, rainstorm, dust storm, hot weather);
③. Waterproof;
④. Dust-proof;
⑤. Good temperature adaptability (can work smoothly at extreme temperature: -40℃~85℃);
Items | Description |
---|---|
Operating voltage | DC 12V/24V |
Radar operating frequency band | 77-78Ghz |
Working temperature | -40℃~85℃ |
Radar power consumption | <2W |
Full load power consumption | <5W |
Shockproof | 5.9G |
Waterproof | IP67 (Radar); IP65 (Control box) |
Refresh rate | 33Hz |
Receiving and transmitting channels | 2TX4RX |
Pitch beam width (6dB) | -2~8℃ |
Horizontal beam width | -60℃~+60℃ |
Range resolution | 0.2M |
Speed resolution | 1.9km/h |
Speed measuring range | ±60km/h |
Detection range | Range from 0.2~40m, 3 detection areas can be set. |
R350 can detect people, vehicles and objects:
It is widely used for commercial fleets such as mining trucks, construction industry vehicles, cargo trucks, tankers, buses, etc:
- Q1. What kind of vehicles does it suitable for?
-
A: It is suitable for forklifts, trucks, buses, etc.
- Q2. Can R350 detect at night?
-
A:Yes, R350 works at day and night and any weather.
- Q3. Is it difficult install?
-
A: No, it is very convenient to install. There is a Calibration APP to assist you and we will also provide you full support if needed.
- Q4. How long is the warranty?
-
Two years.
